Efinox has 3 flattening machines of different types:

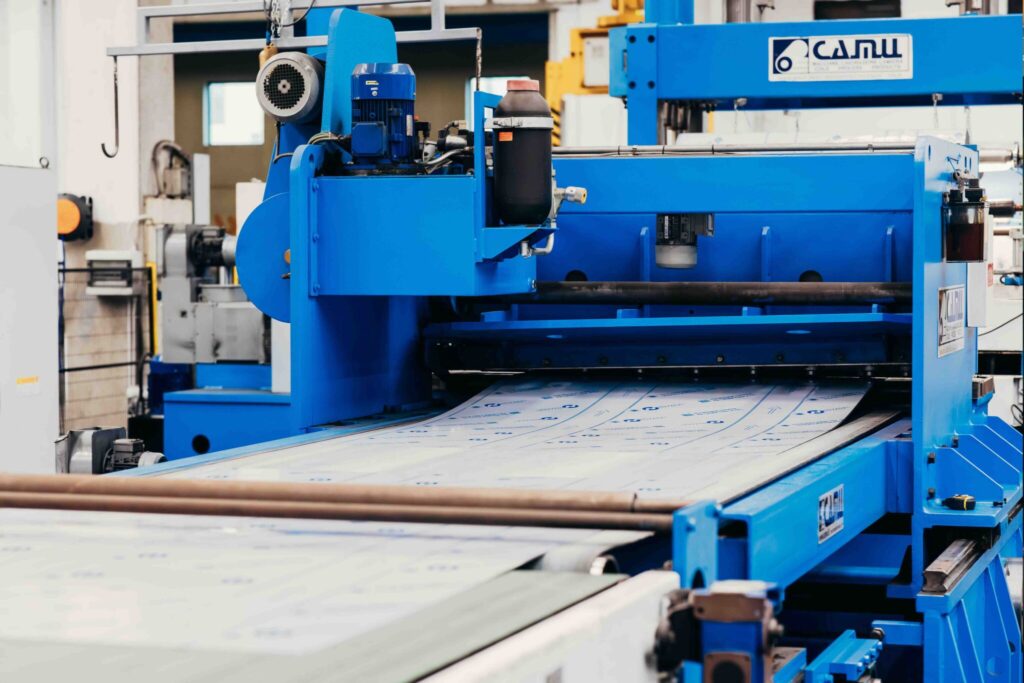

– Cold-rolled flattening machine with in-line trimming, a state-of-the-art plant that capable of flattening thicknesses between 0.4 and 3 mm.
– Cold-rolling flattening machine capable of flattening thicknesses between 0.5 and 3 mm, maximum width 1500 mm and up to 8500 mm in length.
– Hot-rolled levelling machine, capable of levelling thicknesses between 3 and 10 mm maximum width 2000 mm up to a maximum length of 12000 mm
Flattening is a simple and fast process for obtaining flat and tension-free sheets to size, which simultaneously allows high savings and an optimal end product while avoiding subsequent treatments.
Flattening is highly recommended to avoid the well-known problems in some coil. coil processing such as cutting, profiling, stamping and blanking. Plates coming out of the rolling lines often present a number of defects, generally generally attributable to widespread non-planarity phenomena.
During cutting, the internal tensions of the starting material are released causing visible deformations, so the flatness of the material becomes of major importance for obtain a high quality end product without subsequent steps and therefore additional costs.
WHICH COIL DEFECTS CAN BE REDUCED USING THE LEVELLER
PLANAR AND DETENSIONED STAINLESS STEEL FLAT-ROLLING MACHINES
| Cutting lines | Thickness | Width | Length | Maximum reel capacity |
|---|---|---|---|---|
| Cold leveler | From 0.5mm to 3mm | Max 1500mm | Max 8500mm | 27 TON |
| Leveler with in-line trimming | From 0.5mm to 3mm | Max 1500mm | Max 3000mm | 28 TON |
| Hot leveler | From 3mm to 7mm | Max 2000mm | Max 12000mm | 28 TON |
| Hot leveler | From 8mm to 10mm | Max 1500mm | Max 12000mm | 28 TON |
| CUTTING LINES | Cold leveler | Leveler with in-line trimming | Hot leveler | Hot leveler |
| Thickness | From 0.5mm to 3mm | From 0.5mm to 3mm | From 3mm to 7mm | From 8mm to 10mm |
| Width | Max 1500mm | Max 1500mm | Max 2000mm | Max 1500mm |
| Length | Max 8500mm | Max 3000mm | Max 12000mm | Max 12000mm |
| Maximum reel capacity | 27 TON | 28 TON | 28 TON | 28 TON |
